SUZUKI · GSX-R1000 · 2007–2008

GSX-R1000 Bolt-On Winglets

Drilling Required

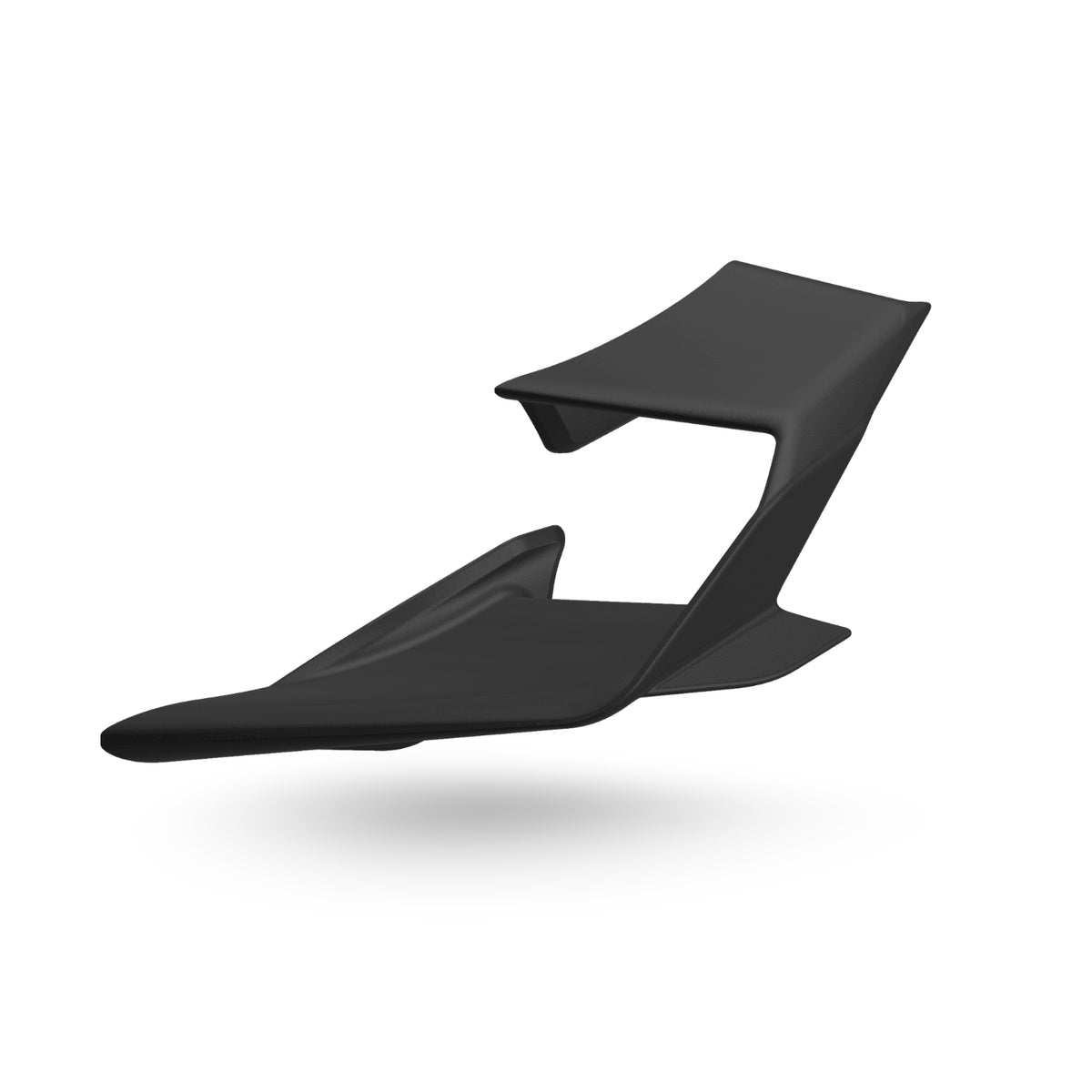

Developed for the Suzuki GSX-R1000 (2007–2008 / K7–K8), the HMZ-K7GSXRK TS is a two-piece, vehicle-specific winglet set with a drilled bolt-on mounting system and fine-textured black finish.
$275.00 USD
Regular price
Unit price
per
Low stock — 13 sets available
Technical Information

HMZ Series winglets are shaped around the original fairing geometry of each intended application, providing a precise, vehicle-specific fit.

Fitment: Suzuki GSX-R1000 (2007–2008 / K7–K8); designed around OEM fairing geometry.

Configuration: Two-piece set, left and right

Model: HMZ-K7GSXRK TS

Material: Carbon Fiber Reinforced Thermoplastic

Finish: Fine-textured Black Surface

Mounting: Drilled and bolt-on installation

Permanent Modification: Required
Mounting Instructions

The HMZ mounting system uses a drilled bolt-on installation and requires permanent modification to the side fairings.

  1. Remove or access the relevant fairing panels as required for your motorcycle.
  2. Dry-fit both winglets and carefully confirm position, symmetry, and clearance before drilling.
  3. Mark the mounting points only after fitment has been confirmed, then drill perpendicular to the fairing surface using the hole size appropriate for the supplied mounting components.
  4. Secure the winglets using the mounting components supplied with your specific kit, then recheck alignment and fastener security before riding.

Professional Installation: Recommended if you are unfamiliar with fairing removal or drilling procedures.

Care: Avoid direct contact with pressure washers, open flames, alcohol, chemical solvents, and strong acidic or alkaline cleaners.

If any mounting point or supplied component does not match the motorcycle during dry fit, stop before drilling and contact HARMONIZE.
In the Box

Left-side HMZ-K7GSXRK TS winglet × 1
Right-side HMZ-K7GSXRK TS winglet × 1
Shipping & returns

Shipping: Orders are prepared according to the inventory or production status shown on the product page. Tracking information is provided once the order has been dispatched.

Delivery & Duties: Transit times begin after dispatch and do not include order processing, production lead time, customs clearance, public holidays, or carrier delays. International orders are shipped under DAP (Delivered at Place), Incoterms® 2020 unless otherwise stated. Import duties, taxes, customs clearance charges, and brokerage fees may apply and are the recipient's responsibility unless otherwise stated at checkout.

Shipping Policy.

Returns: Returns must be requested before installation, drilling, or other modification. Items must remain unused, uninstalled, unmodified, and complete with their original packaging and supplied components. Products that have been drilled, installed, or altered cannot be returned for fitment-related reasons.

Refunds: Approved refunds will be issued to the original payment method within 10 business days after the returned item has been received and inspected. Original shipping charges, return shipping costs, duties, and taxes are non-refundable unless the item received is defective or incorrect.
GSX-R1000 Bolt-On Winglets
$275.00 USD
Regular price
Unit price
per

GSX-R1000 Bolt-On Winglets

Frequently Asked
Questions

Are HMZ motorcycle winglets model-specific?

Yes. Every HMZ winglet kit is developed for the motorcycle model and model-year range specified on the individual product page. The winglet profile, mounting position, and drilling points are designed around the original OEM fairings. Fitment cannot be guaranteed with race fairings, aftermarket panels, repaired bodywork, or modified mounting areas unless specifically stated.

Why do HMZ winglets require drilling?

HMZ Series winglets use a model-specific mechanical mounting system to create a fixed structural connection with the fairing. Drilling is an intentional and permanent part of the installation. HMZ winglets must not be converted to adhesive mounting.

Is professional installation required?

Owners who are comfortable working with motorcycle bodywork can complete the installation after carefully dry-fitting both winglets and confirming the mounting requirements for their specific application before drilling.

If you are unfamiliar with drilling painted body panels or removing motorcycle fairings, we recommend installation by a qualified motorcycle workshop. If any mounting point does not align during the dry fit, stop and contact HARMONIZE before proceeding.

Are HMZ winglets stable at highway speeds?

When installed correctly, the HMZ mechanical mounting system is designed for normal road use, including highway riding. Secure fit depends on correct drilling, hardware placement, tightening, and fairing condition. Inspect the installation regularly, particularly after sustained high-speed riding, track use, transportation, or impact.

What if the winglets arrive damaged or do not align correctly?

Inspect and dry-fit every component before drilling or modifying the motorcycle. If the winglets or any mounting components supplied with your specific kit appear damaged, incomplete, or incorrectly aligned, contact HARMONIZE with your order number and clear photos before proceeding.

Confirmed shipping damage, manufacturing defects, and incorrect items will be reviewed for an appropriate replacement or return solution. Eligible returns must remain unused, uninstalled, unmodified, and complete with their original packaging. Products that have been drilled, installed, or altered cannot be returned for fitment-related reasons.
