Aerodynamic Development of the HARMONIZE HMZ-ZX10R Winglets
A development case study of the HMZ-ZX10R N and HMZ-ZX10R NS winglets for the 2021–2025 Kawasaki ZX-10R, covering physical fitment, prototype refinement, CFD analysis, and high-speed validation.
Development Objective
The HMZ-ZX10R project was developed around a straightforward engineering objective: create a winglet geometry that contributes useful aerodynamic load while remaining properly integrated with the ZX-10R as a complete motorcycle.
That required more than shaping a part that looked aerodynamic. The work had to account for the original fairing, installation surfaces, clearances, pressure behavior, downstream airflow, and the rider’s position behind the front bodywork. The final geometry also had to remain structurally stable during high-speed use.
For this reason, the project was evaluated through both physical development work and CFD. Physical work established fitment and real-world behavior, while CFD provided visibility into pressure and airflow that cannot be observed directly on the road.
01 / PHYSICAL DEVELOPMENT
Physical Development
From platform study to validated prototype geometry.
Platform Study

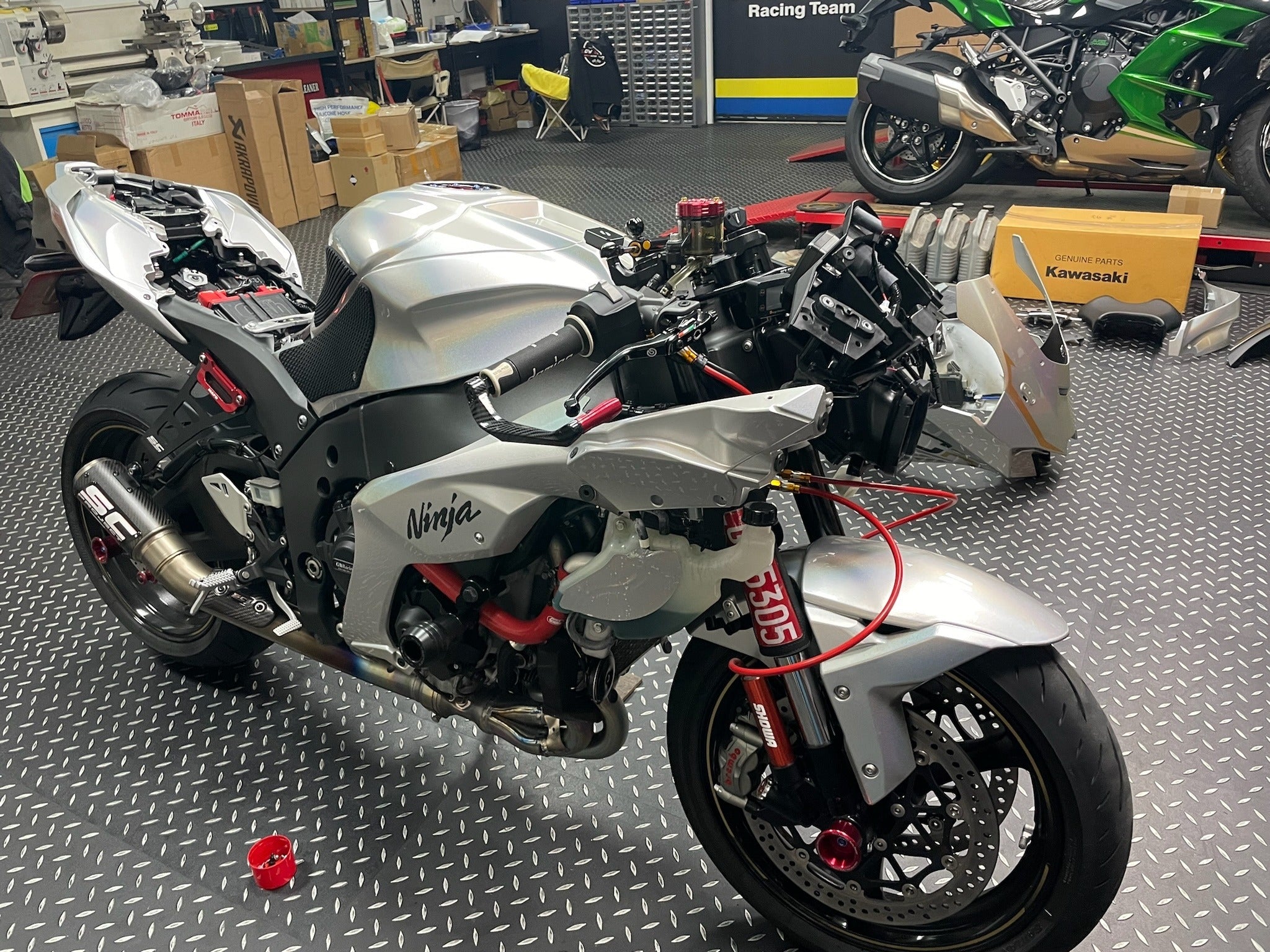

Development began with direct inspection of the motorcycle. The front bodywork was disassembled so the available installation area, local fairing geometry, and surrounding clearances could be reviewed on the actual ZX-10R rather than inferred from exterior measurements alone.
This stage established the physical constraints for the project. Mounting position, surface contact, clearance to adjacent components, and the relationship between the proposed winglet and the fairing all had to be confirmed before the aerodynamic form could be finalized.

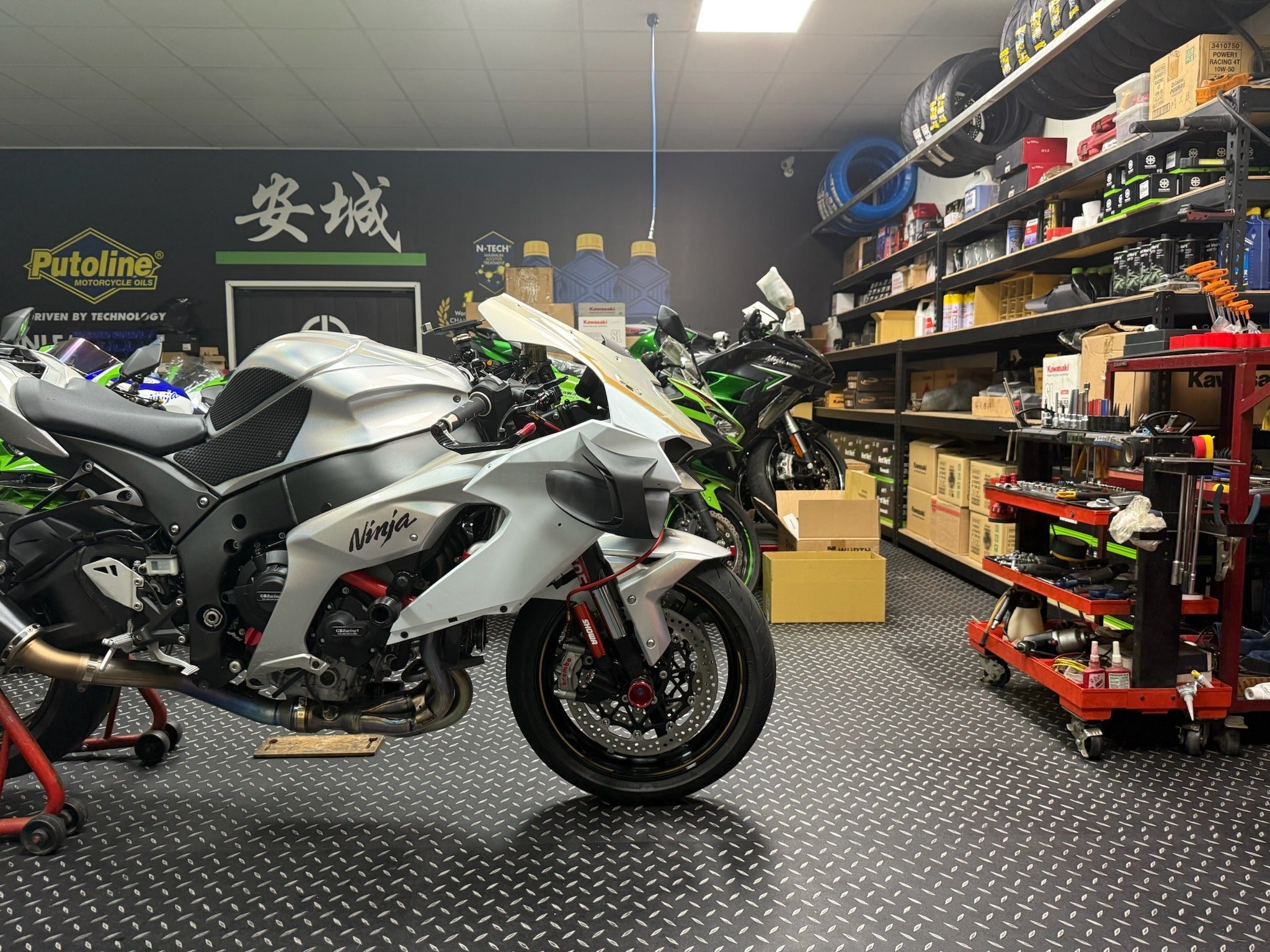

FIG. 01 / PLATFORM STUDYPhysical platform study and mock-up fitment used to establish installation geometry, clearance, and integration with the original bodywork.
Prototype Refinement
With the installation area defined, an early prototype was fitted to the motorcycle to evaluate placement, proportion, and compatibility with the original bodywork. The geometry was then refined before CFD validation, with attention to both aerodynamic direction and the way the component integrated visually and physically with the ZX-10R.

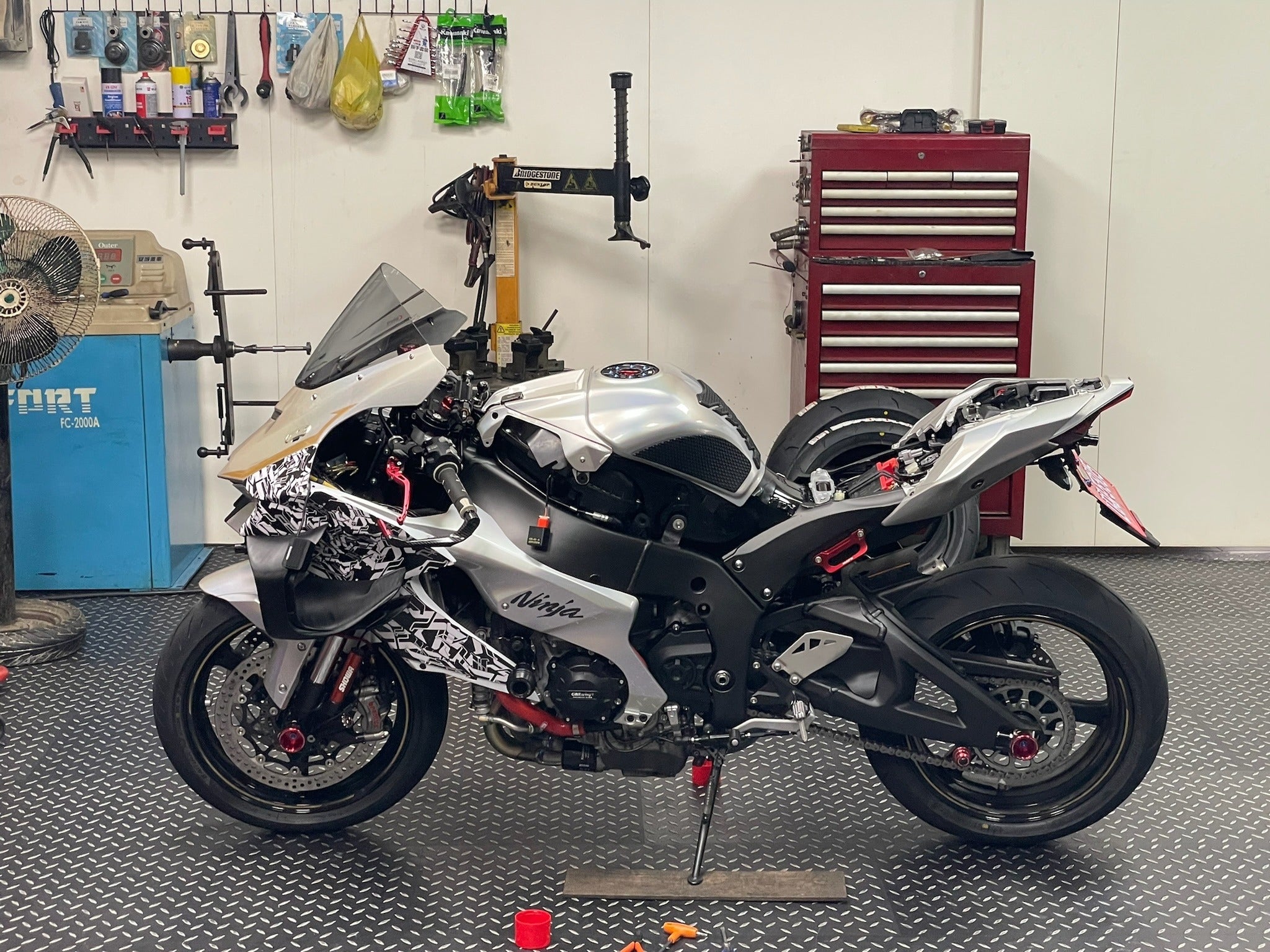

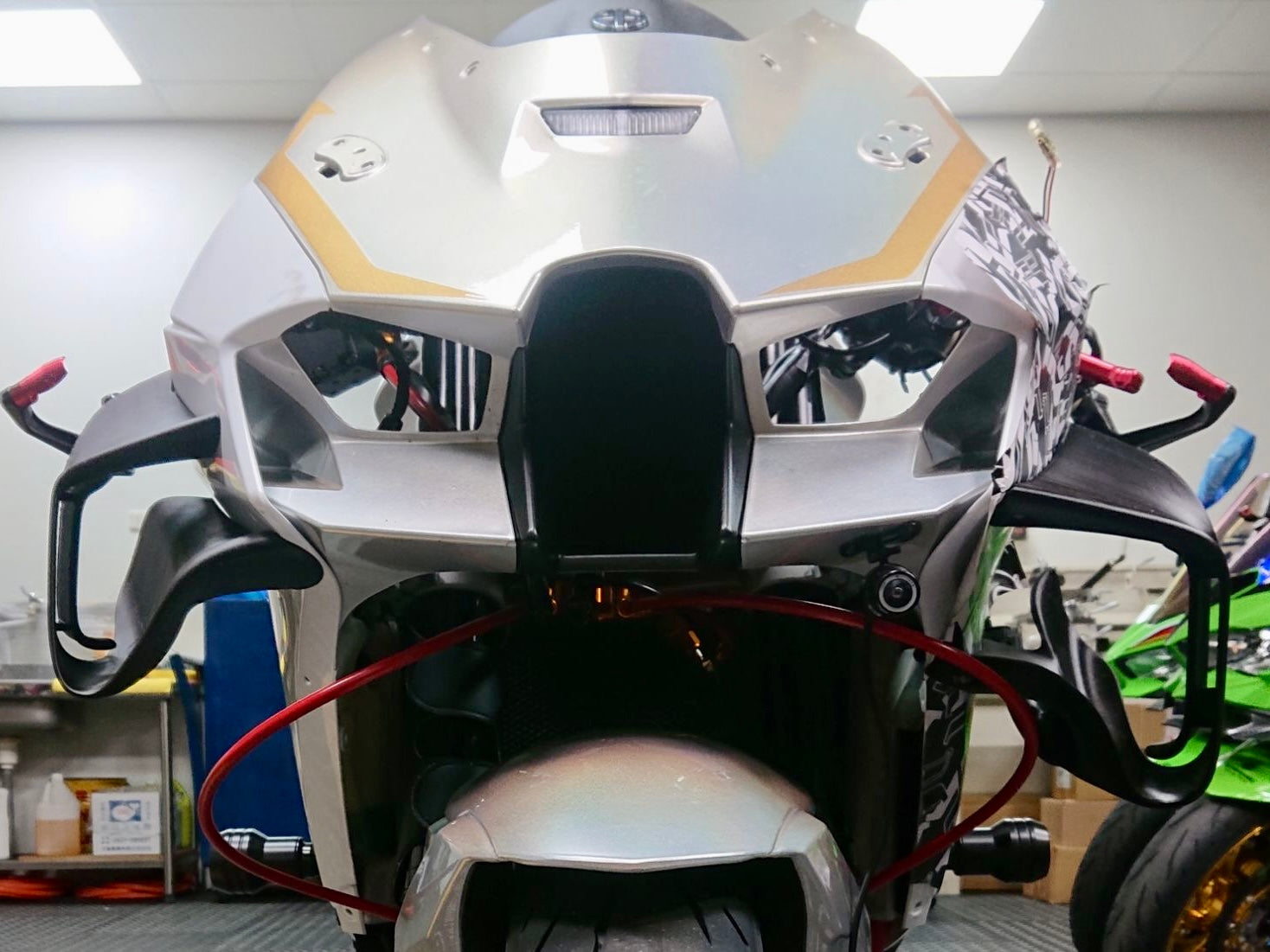

FIG. 02 / PROTOTYPE REFINEMENTEarly prototype development and front-view comparison of the initial configuration with the final geometry.
Fitment Validation
The revised design was checked directly against the bodywork before CFD validation. These checks focused on the interface between the winglet and the original fairing, including the contact surface, alignment, and visual continuity once the parts were installed.
For a component mounted directly to painted bodywork, fitment quality is part of the engineering requirement. A geometry that performs well in simulation but does not match the physical motorcycle accurately is not ready for production.

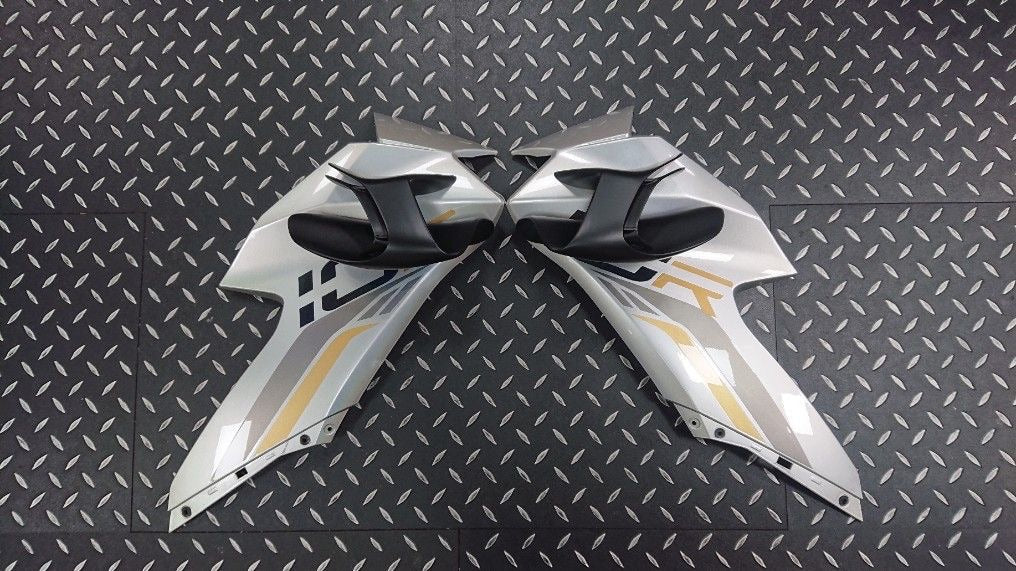

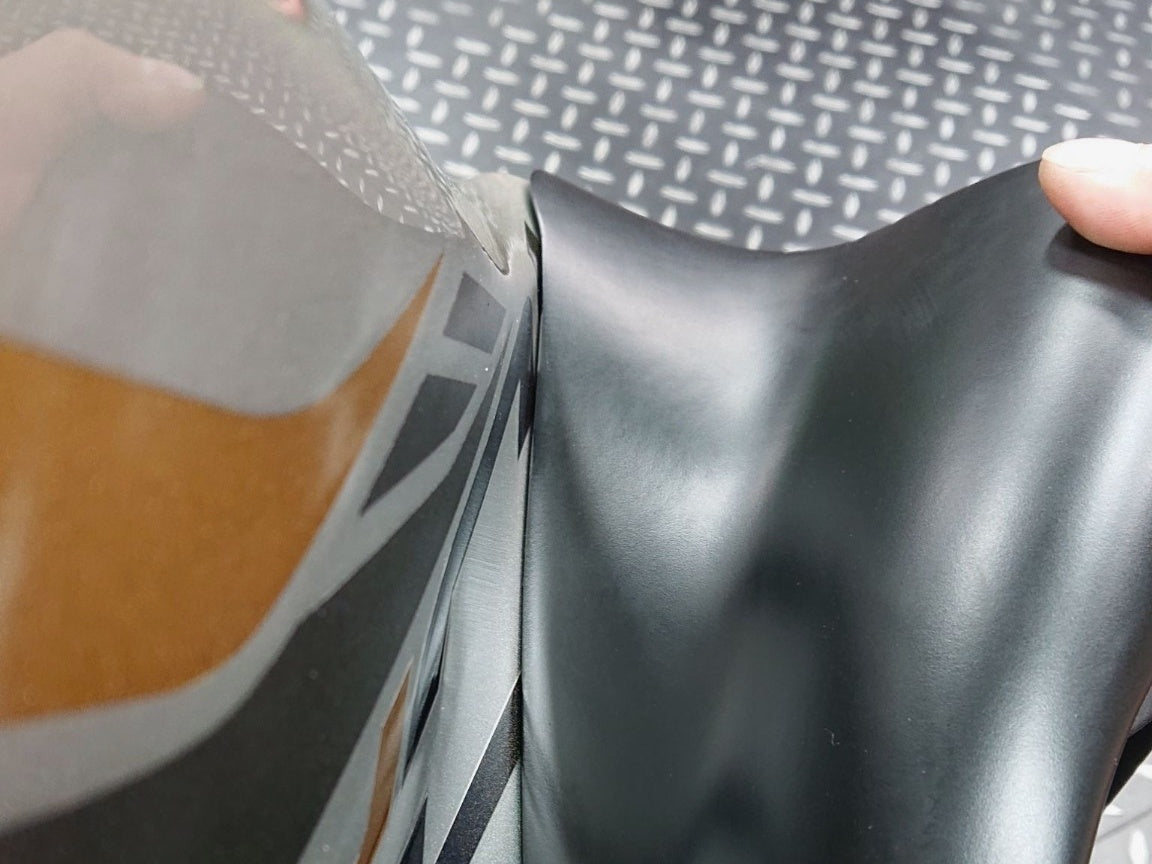

FIG. 03 / PHYSICAL FITMENTFairing installation and close-up interface checks used to verify alignment, contact surfaces, and fitment quality.
02 / AERODYNAMIC VALIDATION
Aerodynamic Validation
Evaluating the final configuration through solver setup, surface response, and downstream flow behavior.
CFD Configuration

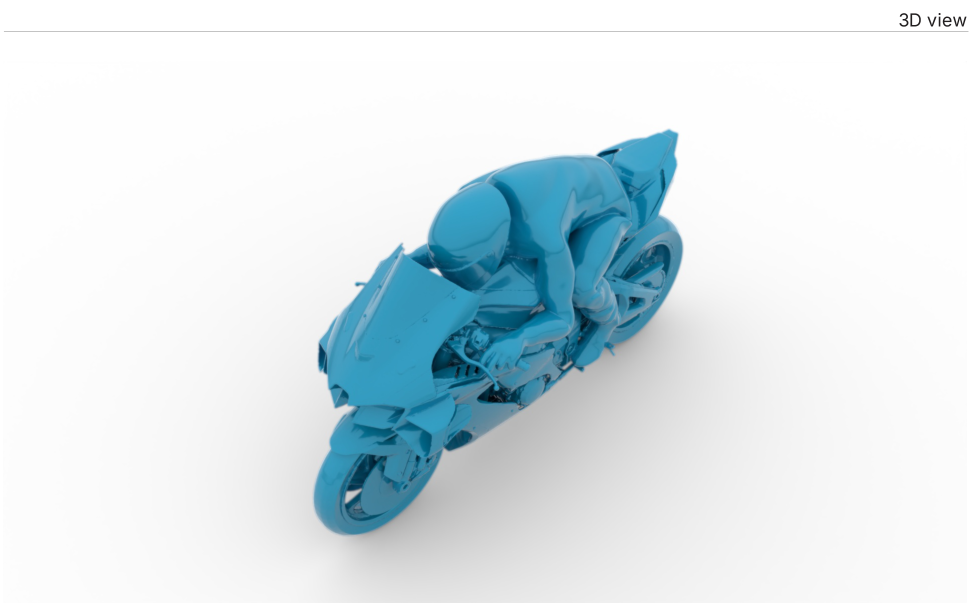

After the revised geometry had been established physically, it was evaluated through computational fluid dynamics. The simulation used the complete motorcycle-and-rider configuration rather than an isolated winglet model.
The final configuration was evaluated at 75 m/s, approximately 270 km/h, with rotating wheels included in the model. The simulation used air at 15°C, a density of 1.225 kg/m³, and atmospheric pressure of approximately 101.3 kPa. The solution used a steady-state RANS approach with a k-ω SST turbulence model and approximately 11.59 million computational cells.
Force convergence was detected after approximately 300 iterations, with the reported force result subsequently evaluated over a 301-iteration averaging window.
The analysis focuses on steady-state aerodynamic behavior; transient vortex structures, crosswind, yaw-angle, and leaned-cornering aerodynamic conditions were outside the scope of this study.
Using the complete configuration was important because airflow leaving the winglet does not end at the component. It continues around the fairing and toward the rider, so the design needed to be considered within the larger flow field around the motorcycle.
Surface Pressure

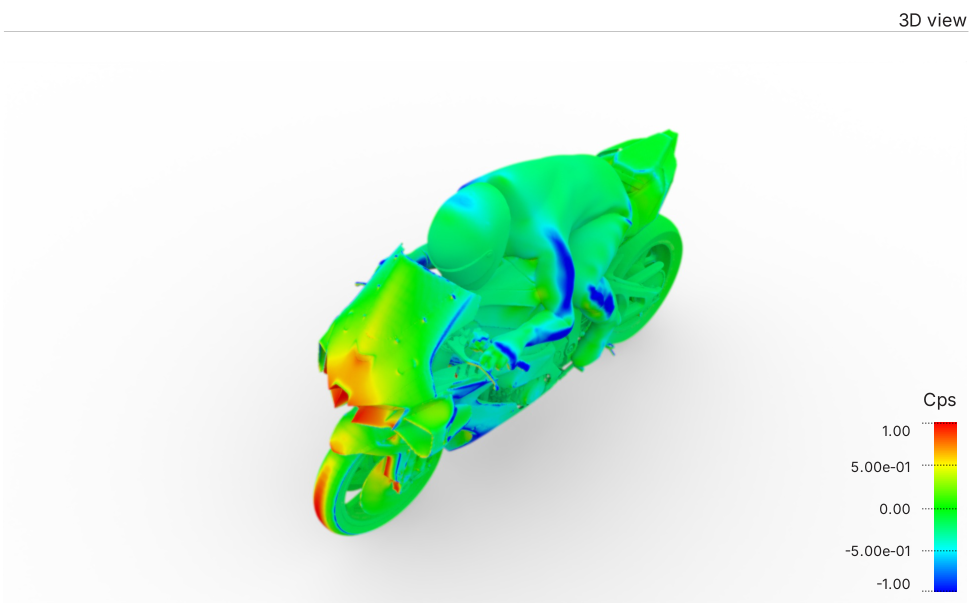

The CFD study examined surface-pressure behavior across the complete motorcycle-and-rider configuration, including the aerodynamic surfaces around the front bodywork. The pressure visualization showed differentiated pressure regions across the evaluated geometry.
At 75 m/s, the complete motorcycle-and-rider configuration recorded a total vertical aerodynamic force of approximately −290 N, equivalent to about 29.6 kgf of downward aerodynamic load. The corresponding total lift coefficient was Cl = −0.138. These values represent the complete motorcycle-and-rider configuration and should not be interpreted as winglet-only downforce.
Drag was also evaluated as part of the CFD study; however, because this report represents a single aerodynamic configuration rather than a stock-versus-winglet comparison, the result is not used to claim an increase or reduction in drag relative to the original motorcycle.

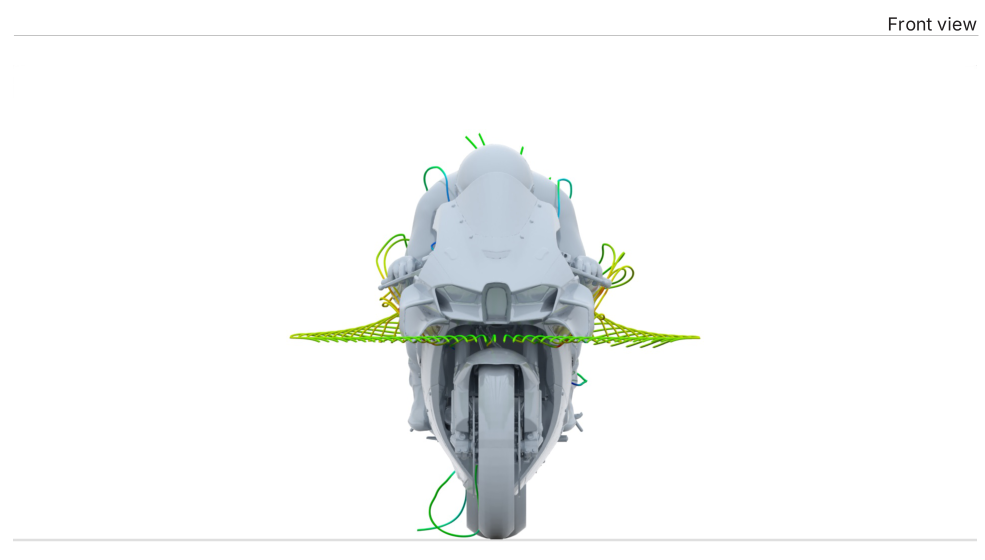

Flow Behavior

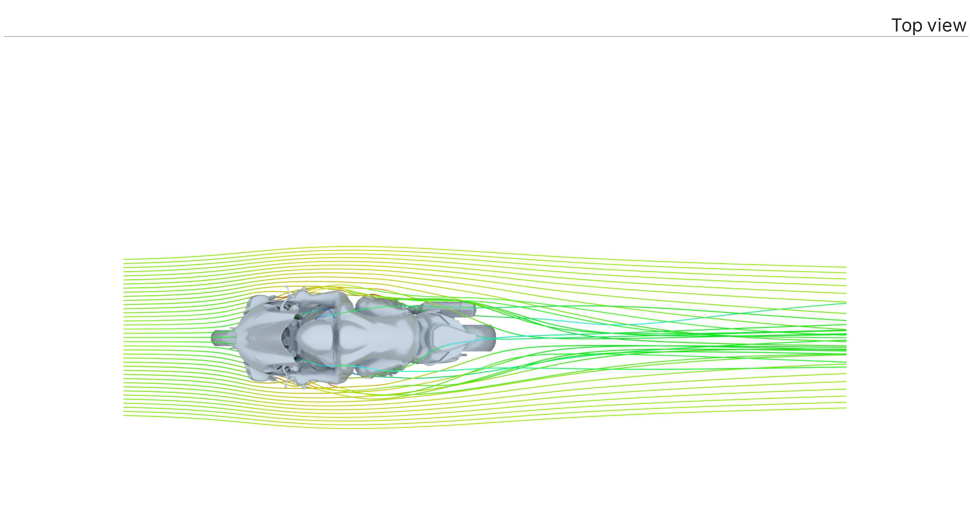

The final wing profile was designed to direct part of the downstream flow outward from the rider envelope. Streamline visualization was then used to review the resulting flow field around the complete motorcycle-and-rider configuration.
The horizontal and vertical streamline views provided a visual reference for airflow direction and continuity downstream of the front bodywork and winglet region. Because the CFD report evaluates a single configuration, these views are used as flow-field evidence rather than as a direct before-and-after comparison.

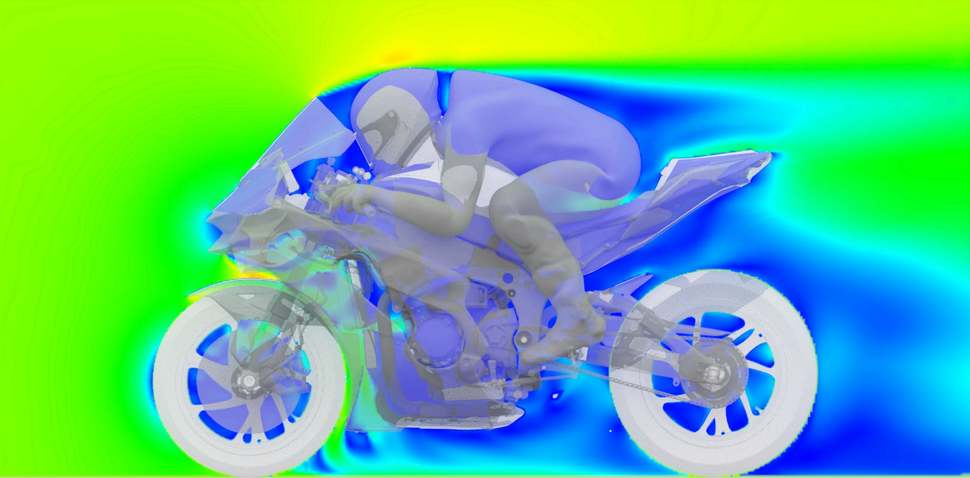

Velocity Field
The velocity section visualizes local airflow-speed variation through and downstream of the complete motorcycle-and-rider configuration. The wake region behind the rider and motorcycle is visible as a lower-velocity flow field relative to the incoming stream.
Because the study contains a single configuration, the image is used to characterize the simulated flow field rather than to claim a reduction in wake relative to the stock motorcycle.
03 / VALIDATION & PRODUCTION
Validation & Production
Translating the validated aerodynamic direction into its final production configuration.
High-Speed Validation
Following CFD analysis, the revised configuration returned to physical road and track validation. Testing included comparison with the earlier development version and straight-line speeds of approximately 220–250 km/h.
No abnormal vibration, deformation, or aerodynamic noise was observed from the winglet assembly during the test sessions. Rider feedback also indicated a more stable sensation at the front of the motorcycle and less direct airflow toward the arms and legs, with a lower perceived wind load during high-speed riding.
These rider observations are treated as qualitative feedback rather than instrumented performance measurements. CFD results, physical observations, and rider feedback each provide a different type of evidence, and they were considered separately when assessing the final configuration.
Production Configuration
CFD findings were reviewed together with physical fitment work and high-speed validation before the final geometry was approved for production.
The same aerodynamic geometry is used for both HMZ-ZX10R versions.

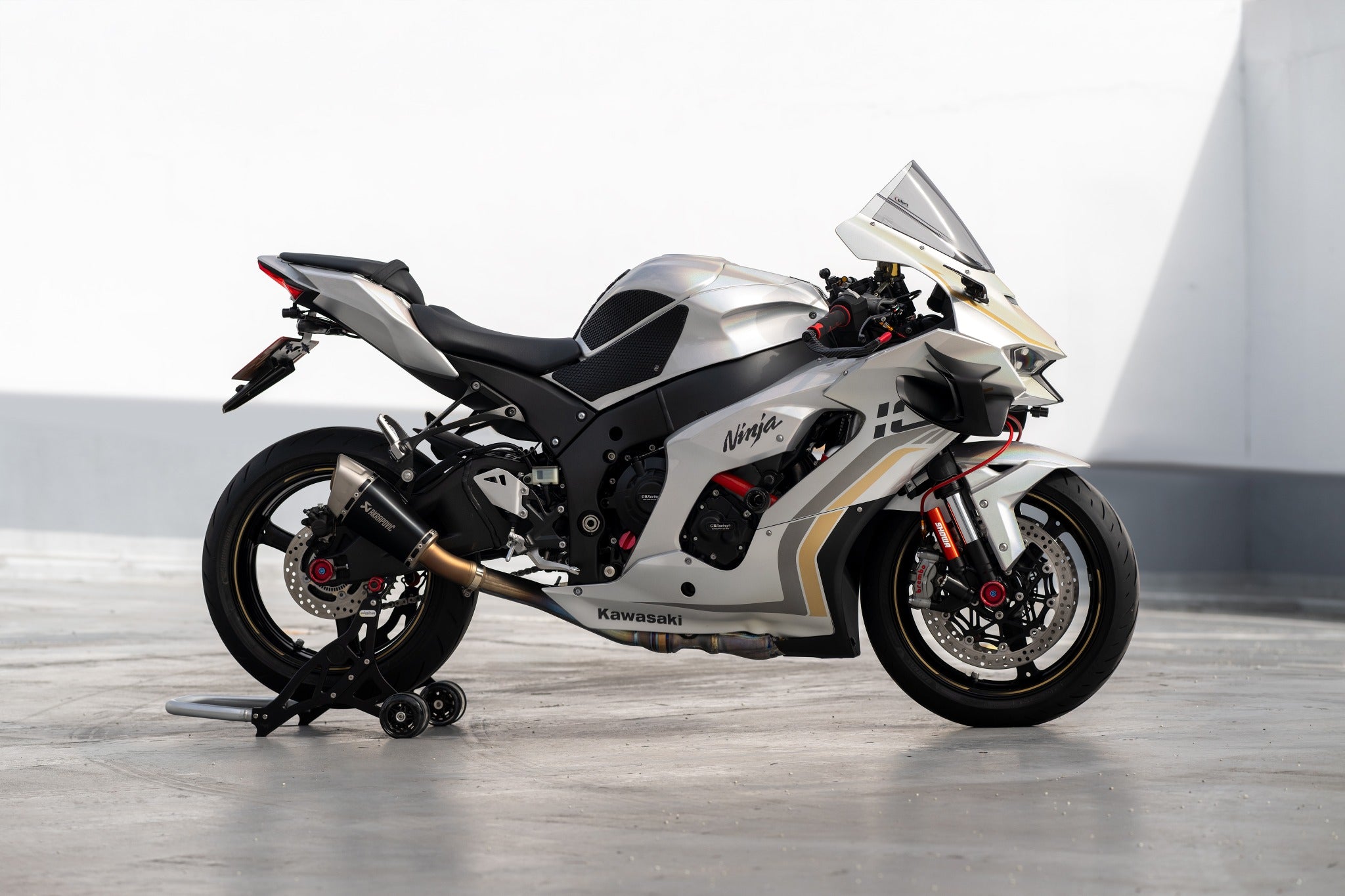

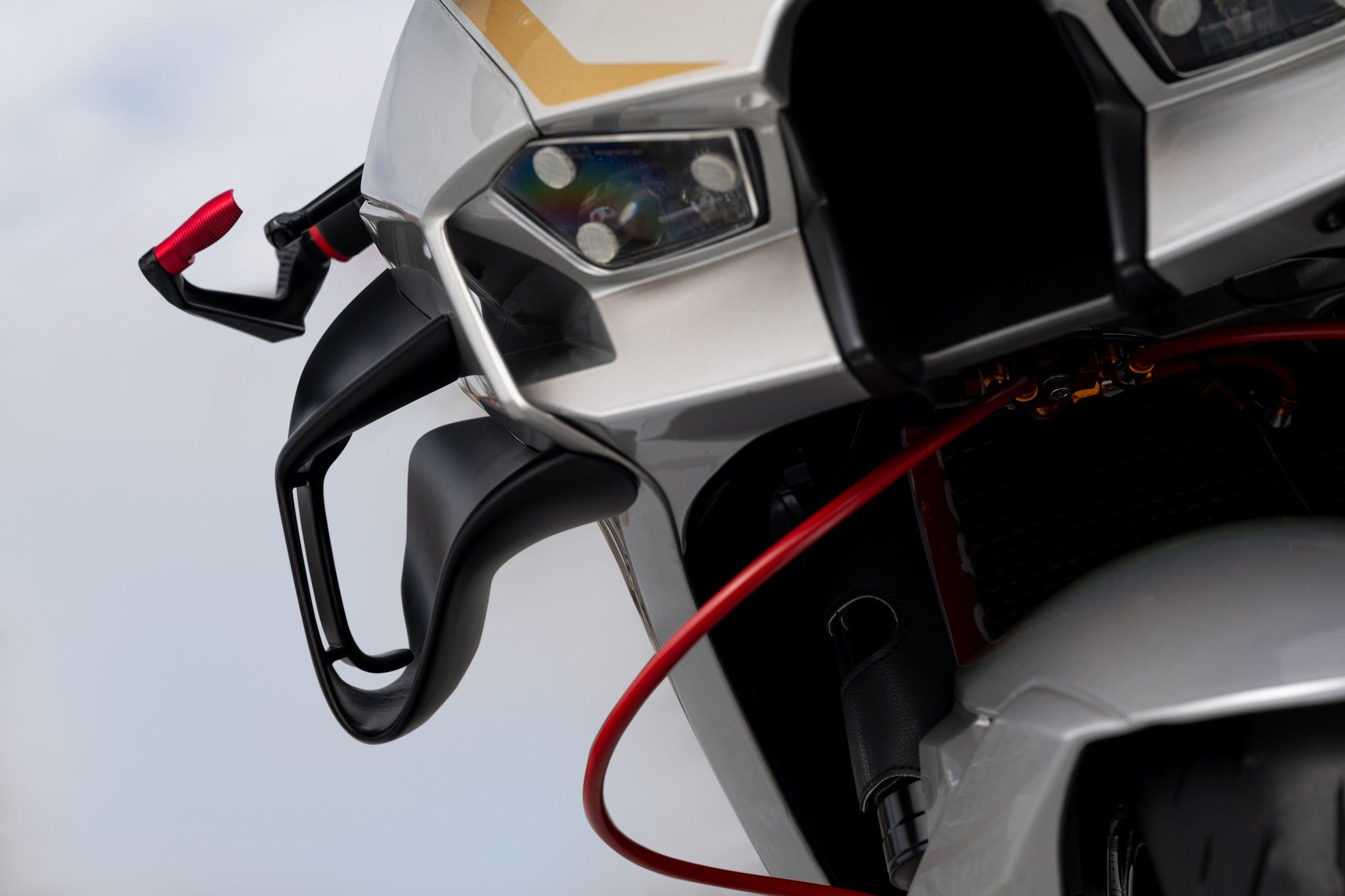

Final production geometry shown in detail and on the complete motorcycle.
Production Configurations
Shared aerodynamic geometry, offered in two construction specifications.
HMZ-ZX10R N
Painted nylon-based construction.
HMZ-ZX10R NS
Carbon-fiber composite construction.
Validation Outcome
From simulated behavior to production approval.
The final HMZ-ZX10R configuration met the project targets for physical integration and stable high-speed operation, while CFD provided a documented view of surface-pressure behavior and the surrounding downstream flow field.
CFD was used to examine the aerodynamic behavior of the evaluated configuration, while fitment work and road/track validation assessed how the component behaved on the actual motorcycle. These sources of evidence were considered together while remaining distinct in what each could demonstrate.
From Development to Production
HMZ-ZX10R N / HMZ-ZX10R NS

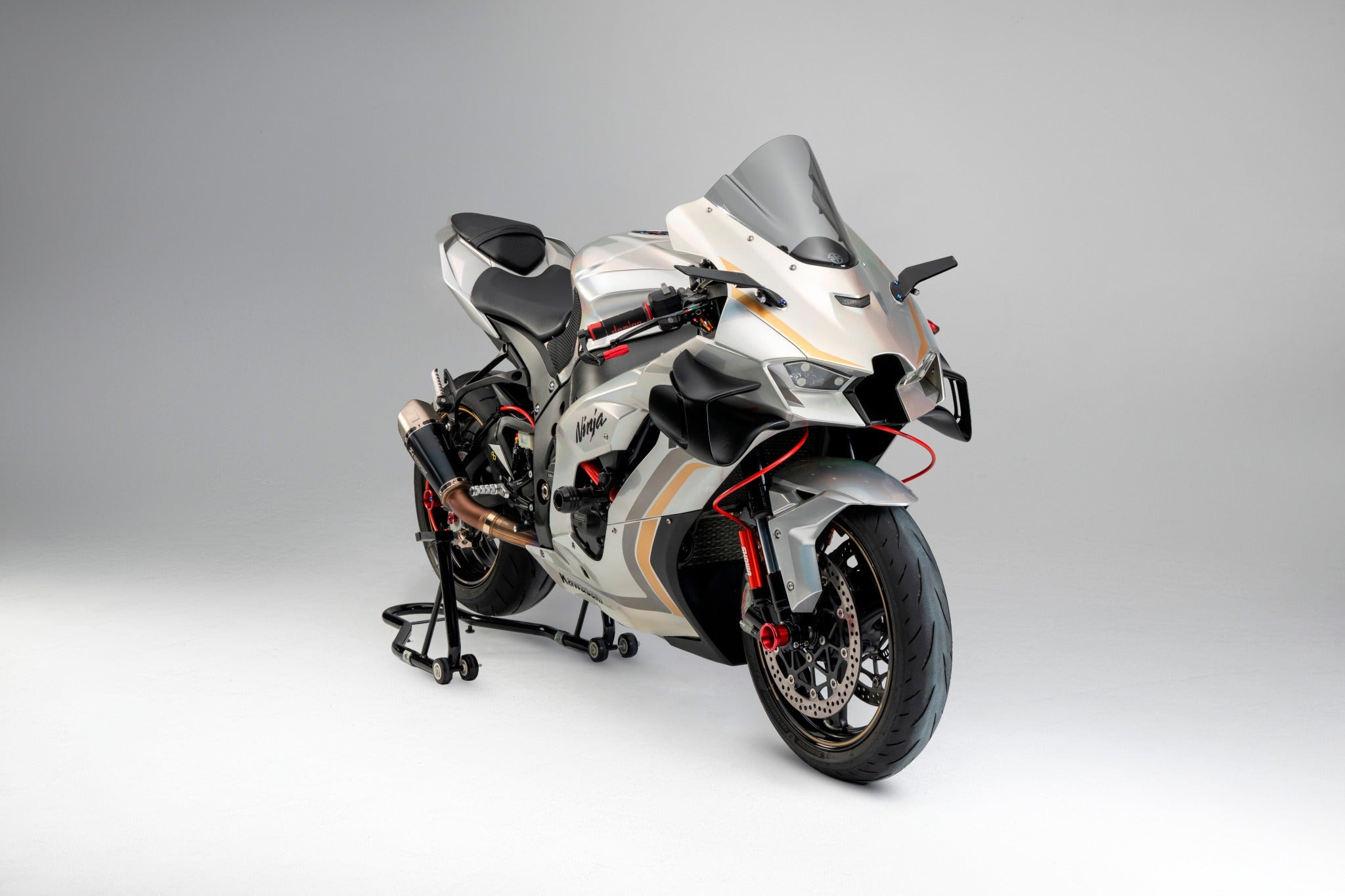

Developed for the 2021–2025 Kawasaki ZX-10R. Both versions use the same aerodynamic geometry, with a choice of painted nylon-based or carbon-fiber composite construction.
