Winglets have moved from race paddocks to road-going sportbikes. A race-inspired shape is easy to reproduce; its aerodynamic behavior is not. This guide separates what winglets can do, what depends on conditions, and what has not been established.
Quick Answer
Motorcycle winglets create speed-dependent aerodynamic load by shaping airflow around the front of the bike. On track, where speeds are higher and more repeatable, they can help keep the front end loaded during acceleration and high-speed braking. On the street, the same physics applies, but the effect is usually smaller and harder to isolate.
Applies to: Front-mounted winglets on fully faired sportbikes, in both street and track use.
Covers: General aerodynamic principles, HARMONIZE development observations, and the limits of what current testing establishes.
Does not cover: Naked and unfaired motorcycles, rear-mounted aerodynamic devices, or road-legality requirements in any specific market.
How Motorcycle Winglets Work
A motorcycle winglet is a small aerodynamic surface mounted around the front fairing.
As air passes across the wing, differences in pressure create an aerodynamic force. When the surface is designed and positioned to direct that force downward, it adds vertical load to the motorcycle. This load only develops while the motorcycle is moving through the air. It is not constant, and it does not remain the same across different speeds.
The location of the force matters as much as the amount. A winglet positioned near the front of the motorcycle affects the bike differently from an aerodynamic surface mounted farther back. Its interaction with the fairing, wheels, and rider also changes the surrounding airflow.
For this reason, motorcycle aerodynamics is normally evaluated as a complete system. Published research into sportbike aerodynamics treats the motorcycle and rider as one connected shape rather than two isolated objects, and identifies rider position as one of the most influential variables in the entire flow field.
Why Speed Matters
Aerodynamic force rises with the square of airspeed. If airspeed doubles while other conditions remain comparable, the theoretical aerodynamic force increases by roughly four times.
This is why a winglet may have a limited effect at lower speeds but become more relevant as the motorcycle moves faster.
It is also why every downforce figure needs context. A useful result should identify the speed, motorcycle, rider configuration, test method, and comparison baseline. A number without those conditions says very little about how the component will behave in actual use.
Conceptual load path
Relative airspeed
Available aerodynamic force increases approximately with v².
Geometry & angle
Shape and local airflow determine the force direction and magnitude.
Aerodynamic load
The winglet produces force only while moving through the air.
Mounting system
The structure must hold the intended position and transfer load.
Motorcycle
The resulting effect depends on where that load enters the complete bike.
Why Race Motorcycles Use Winglets
Under hard acceleration, load transfers toward the rear of the motorcycle. On a high-powered race bike, the front wheel becomes lighter and may begin to lift. Electronic anti-wheelie systems manage this by adjusting power delivery. Aerodynamic surfaces take a different approach: they add front-end load as airspeed increases.
This creates a limitation worth stating plainly. Front-wheel lift tendency is strongest in the lower gears, at exactly the speeds where aerodynamic load is smallest. Winglets contribute most in top-gear acceleration and high-speed sections, not at the moment a bike is most likely to lift the front wheel. Anyone expecting a winglet to hold the front down out of a slow corner is expecting it to work where it has the least authority.
Racing made winglets visible, but race-bike results cannot be transferred directly to a different motorcycle or aftermarket component. Geometry, placement, fairing design, rider position, and operating speed all change the result.
Street vs Track
The physical principles are the same on the street and the track. The strength and consistency of the effect are different.
| Factor | Street Riding | Track Riding |
|---|---|---|
| Speed | Lower and frequently changing | Higher and more repeatable |
| Aerodynamic load | Smaller and less consistent | Greater and easier to evaluate |
| Rider perception | Often mixed with wind, road, and body movement | More likely to appear in repeated high-speed sections |
| Main priorities | Fitment, secure installation, durability, and integration | Aerodynamic balance, structural rigidity, and validation |
On the Street
During normal road use, the aerodynamic contribution of a winglet is usually subtle. Traffic, crosswinds, rider movement, uneven surfaces, and constant speed changes make one aerodynamic effect difficult to identify by feel alone. Riders are more likely to notice the quality of the installation and how naturally the component follows the original fairing.
That does not make every street winglet purely decorative. It means the product should be understood within the speeds and conditions where it will actually be used. Public roads are not suitable places to test high-speed aerodynamic behavior.
On the Track
Track riding gives aerodynamic components more opportunity to work. Higher speeds occur repeatedly, and riders pass through similar acceleration and braking zones each lap. These conditions make aerodynamic behavior more relevant and easier to compare.
A properly developed winglet can contribute during hard acceleration, fast straight-line sections, and the first phase of high-speed braking. It still works alongside the tires, suspension, chassis geometry, electronics, and rider, not in place of them.
Are Motorcycle Winglets Street Legal?
Regulations covering aftermarket bodywork and aerodynamic devices vary by country, and in some markets by state or region. Requirements that may apply include limits on how far a component projects beyond the original bodywork, rules on edge radius and protrusions, type-approval or homologation status, and periodic technical inspection standards.
Track organizers and racing series set their own technical regulations, and these are independent of road-legality requirements. A component accepted for closed-circuit use is not automatically compliant for road use, and the reverse is also true.
HARMONIZE does not certify products for road use in any specific market. Confirm the requirements that apply in your country and for your intended use before purchase, and check the technical regulations of any series or track day organizer you ride with.
What the Rider May Notice
Acceleration
As speed builds, a front-mounted winglet can add downward aerodynamic load near the front of the motorcycle. If the amount and position of that load suit the bike, it can help the front end remain more settled under acceleration and reduce front-wheel lift tendency.
As noted above, aerodynamic load becomes stronger with speed while acceleration-induced weight transfer begins much earlier. Winglets therefore work alongside throttle control, chassis setup, and electronic rider aids rather than replacing any of them.
High-Speed Stability and Braking
Additional front-end load can contribute to a more stable sensation during fast straight-line riding.
At the beginning of a high-speed braking zone, the motorcycle still carries substantial airspeed, so the winglets can continue producing load. That contribution falls quickly as the bike slows.
The result depends on the complete aerodynamic balance. More downforce is not automatically better if it acts in the wrong place or creates excessive drag.
Cornering
Cornering claims require care. A winglet developed around an upright motorcycle experiences different airflow as the bike leans. Ground proximity, yaw, lean angle, and rider position can change both the direction and distribution of aerodynamic force. For this reason, "improves cornering grip" is too broad a claim unless the design has been evaluated under the relevant conditions.
Airflow Around the Rider
Some winglets also influence the airflow leaving the front bodywork. Depending on their geometry, they may direct part of the flow outward or away from certain areas of the rider. Pressure plots and streamline visualizations can help examine this behavior.
A flow visualization of one configuration shows how air moves within that simulation. A direct improvement claim still requires a defined comparison.
What Separates a Functional Winglet From a Visual Add-On?
Two winglets can look similar and behave differently. The result depends on several connected details:
- Wing profile and surface area
- Angle and position
- Local airflow from the original fairing
- Distance from the motorcycle centerline
- Structural stiffness
- Mounting accuracy
- Left-to-right alignment
- Interaction with the rider and surrounding bodywork
The original fairing shapes the air before it reaches the winglet. Moving the same part to another motorcycle, or even to another position on the same motorcycle, changes the airflow it receives. Copying the silhouette does not copy the aerodynamic behavior.
Material
Carbon fiber can change weight, stiffness, construction, and appearance, but material alone does not create more downforce. Aerodynamic behavior is primarily determined by external geometry and operating conditions. Construction still matters because the component must hold its intended shape under load.
Material determines how the part is built. Geometry determines how it meets the air.
Mounting and Fitment
Aerodynamic load must pass through the winglet and its mounting system into the motorcycle. Accurate fitment helps maintain the intended position and angle. Poor fitment can lead to uneven alignment, vibration, fairing stress, movement, or interference with nearby components.

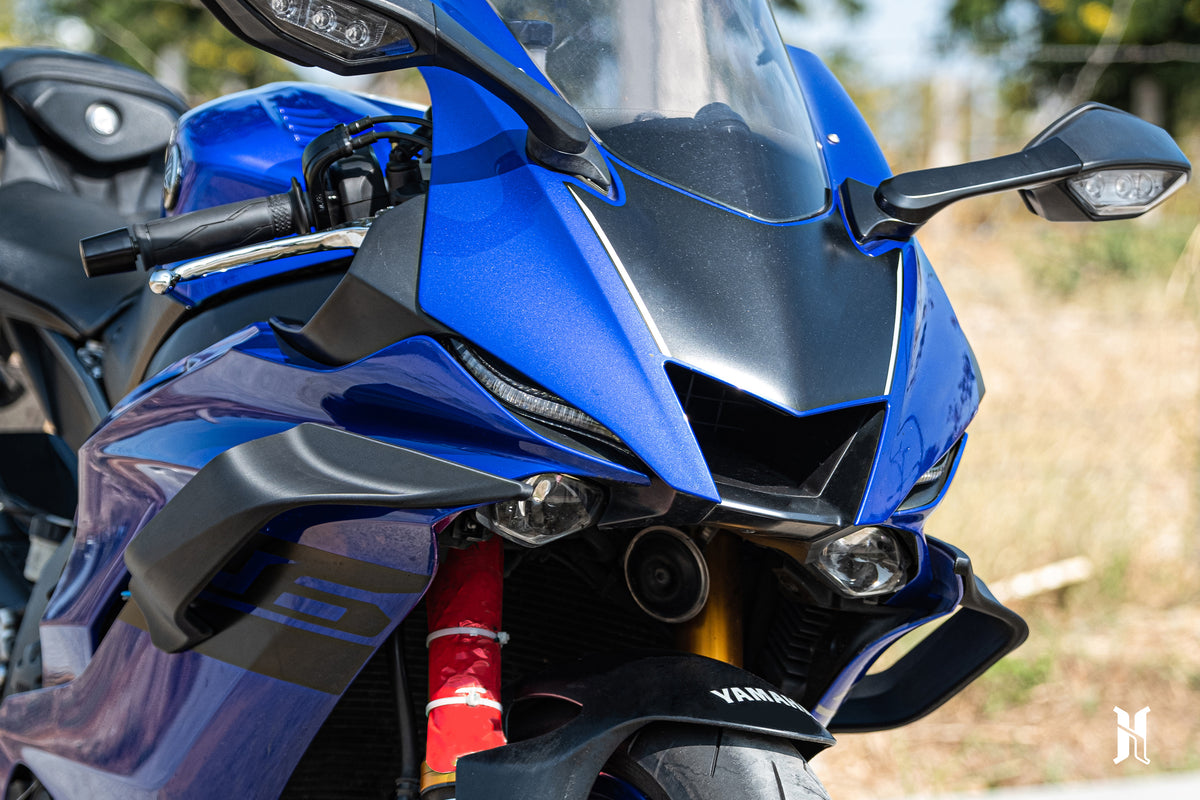

HARMONIZE offers two mounting formats for selected motorcycles. The HMN Series adhesive-mounted winglets use pre-applied 3M VHB and do not require permanent fairing modification on compatible models. The HMZ Series mechanically mounted winglets use model-specific mounting points and may require drilling.
The mounting format affects installation and structural requirements. It does not determine aerodynamic performance by itself.
The HARMONIZE Development Approach
At HARMONIZE, development begins with the motorcycle. The original bodywork is studied to understand the available installation area, surface geometry, clearances, and proportions. Early prototypes are then fitted to the actual motorcycle so their position and relationship with the fairing can be refined before production.
Selected flagship projects receive additional CFD analysis. Physical development, simulation, and real-world testing answer different questions, so their results remain separate.
CFD can reveal pressure distribution and airflow that cannot be seen during a riding test. Physical validation can identify fitment, vibration, deformation, and installation behavior that a simulation cannot confirm on its own. Rider feedback adds another perspective, but it remains qualitative unless supported by instrumentation.
What Each Validation Method Can Establish
| Evidence | What it can show | What it cannot establish by itself |
|---|---|---|
| CFD simulation | Pressure distribution, airflow behavior, and calculated forces for the defined simulated configuration. | Real-world fitment, vibration, deformation, or an incremental winglet-only effect unless the comparison is explicitly modeled. |
| Physical validation | Fitment, alignment, mounting stability, vibration, deformation, installation behavior, and observable aerodynamic noise. | A precise aerodynamic force value without suitable instrumentation and a controlled test method. |
| Rider feedback | Qualitative observations about perceived stability, behavior, noise, and repeatable sensations in use. | A quantitative aerodynamic claim or a controlled stock-versus-modified difference. |

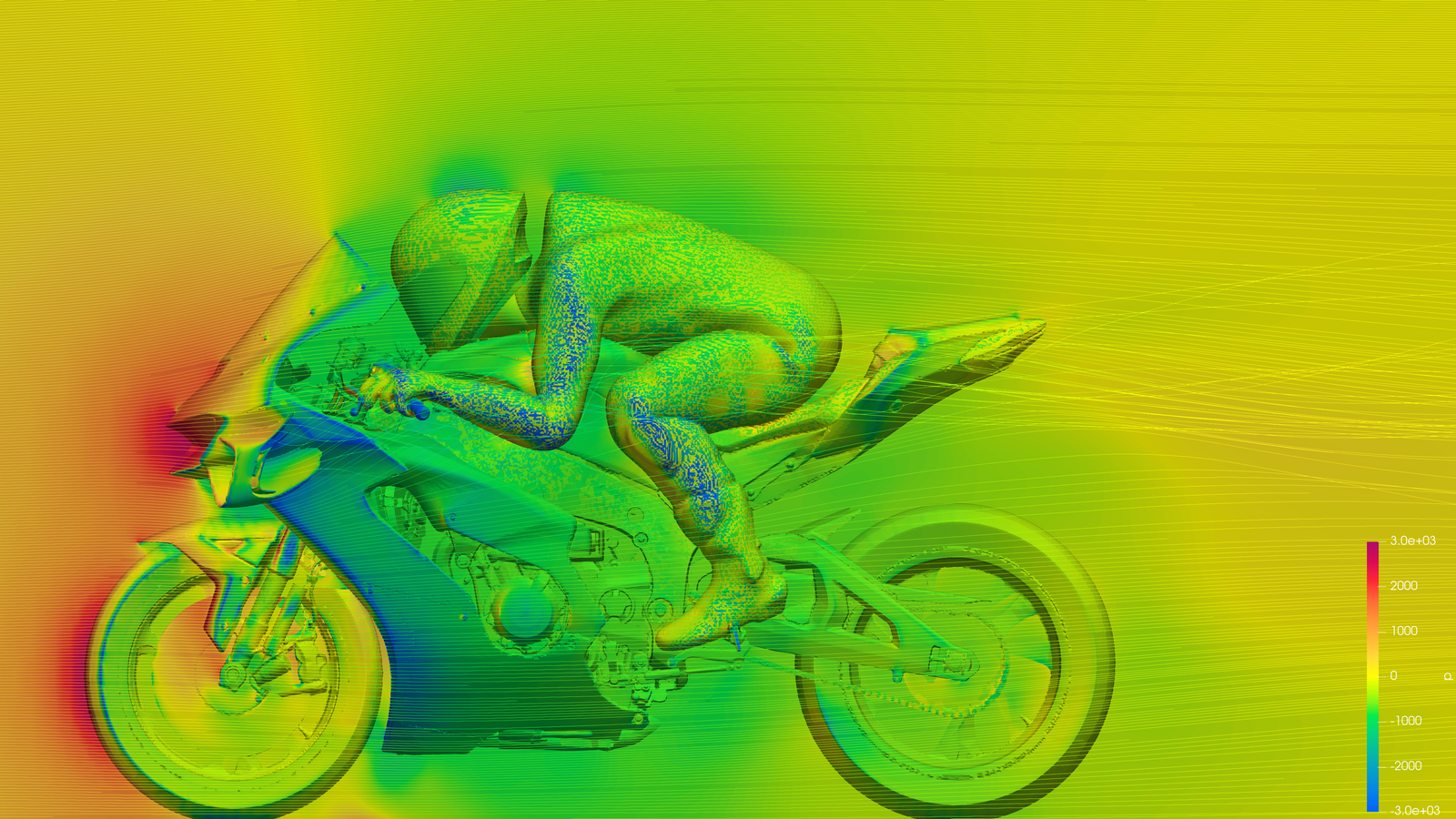

For the HMZ-ZX10R case below: the current study records one complete motorcycle-and-rider CFD configuration. It does not establish winglet-only force or a stock-versus-winglet delta.

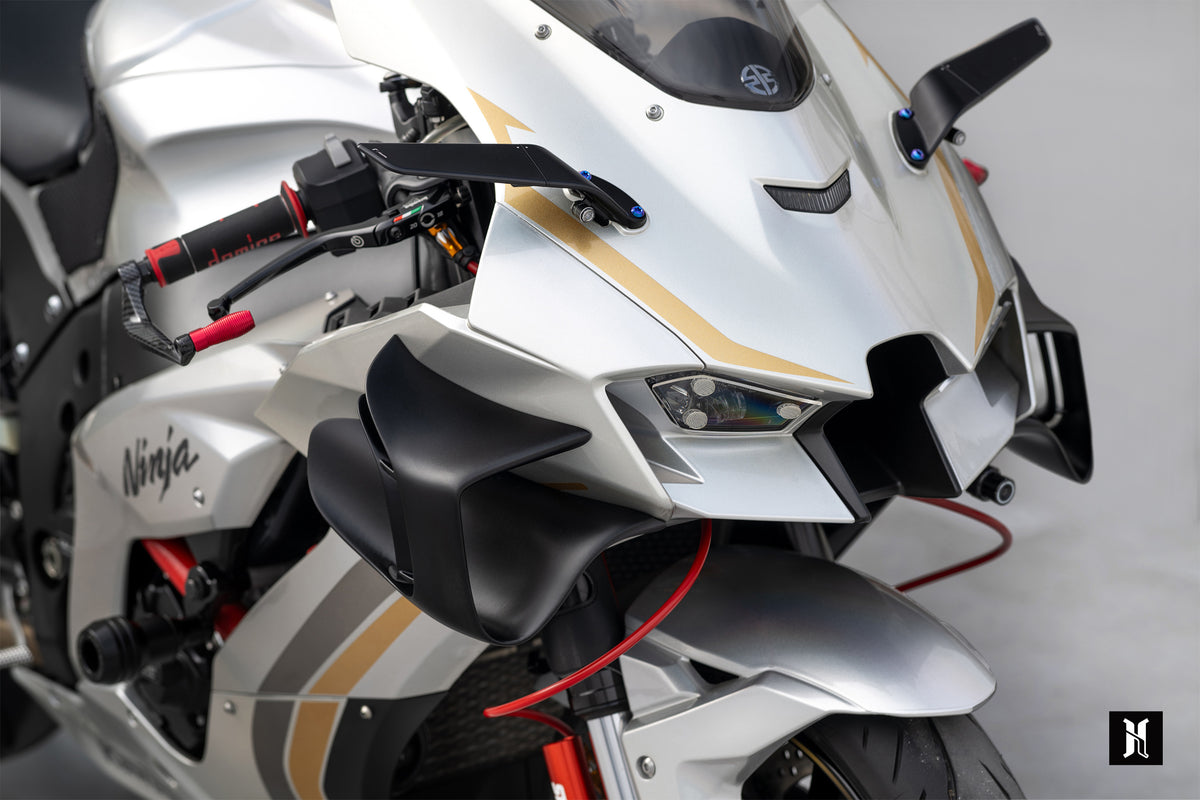

HARMONIZE Development Case: HMZ-ZX10R
| Platform | Kawasaki Ninja ZX-10R, 2021–2025 |
|---|---|
| CFD condition | 75 m/s, approximately 270 km/h |
| Configuration | Complete motorcycle and rider with rotating wheels |
| Recorded result (complete motorcycle and rider, not winglet-only) | Approximately 290 N downward, shown as −290 N in the CFD coordinate system, equivalent to about 29.6 kgf |
| Study scope | One final aerodynamic configuration |
| Not established | Winglet-only force, and stock-versus-winglet difference |
The HMZ-ZX10R development project used a complete Kawasaki Ninja ZX-10R and rider model rather than an isolated winglet.
The production component from this program is available on the HMZ-ZX10R winglets product page.
The figure above is the result for the complete motorcycle-and-rider configuration. It is not a winglet-only downforce figure. The study evaluated one final configuration rather than running a stock-versus-winglet comparison, so the result is not used to claim that the winglets independently added 29.6 kgf of downforce or reduced drag by a specific amount.
Subsequent physical validation examined installation stability, vibration, deformation, and aerodynamic noise. Rider observations were documented separately as qualitative feedback.
What a test cannot establish is as important as the result it records.
Are Motorcycle Winglets Worth It?
The answer depends on the motorcycle, the product, and what the rider expects from it.
A track-focused rider should look closely at aerodynamic balance, mounting rigidity, and the evidence available for the specific design. For street riders, model-specific fitment, secure installation, durability, and visual integration may be more immediate considerations.
Appearance is also a valid reason to choose winglets. The important distinction is whether aerodynamic styling is being presented honestly or used as a substitute for measured performance.
Before choosing a set of winglets, check:
- The exact compatible model and years
- The required mounting method
- Whether permanent fairing modification is needed
- What testing or development information is available
- Whether published figures refer to the winglet or the complete motorcycle
- The speed and configuration used for any claimed result
- The regulations that apply in your market and for your intended use
Frequently Asked Questions
Do motorcycle winglets work at street speeds?
They still interact with the airflow, but the resulting force is smaller at lower speeds. During normal road use, the effect may be difficult to separate from wind, suspension movement, and changes in rider position.
Can motorcycle winglets reduce wheelies?
They can help reduce front-wheel lift tendency when sufficient airspeed is present. Because aerodynamic load grows with speed, they contribute least in the lower gears where lift tendency is highest. They do not replace throttle control, electronic anti-wheelie systems, or correct chassis setup.
Do winglets increase front-tire grip?
Winglets do not change the tire compound or create mechanical grip directly. They can add aerodynamic load through the motorcycle at speed, but the tire's response depends on the complete setup and riding conditions.
Can winglets increase drag?
Yes. An aerodynamic surface can affect both vertical force and drag. A defined comparison between stock and modified configurations is needed before claiming an increase or reduction.
Are adhesive-mounted winglets only for appearance?
Mounting method alone does not determine aerodynamic behavior. Geometry, position, stiffness, installation, and speed remain the main factors. Adhesive-mounted products must still be fitted to their specified surfaces and installed according to the required preparation and curing instructions.
The Bottom Line
Motorcycle winglets can generate downward aerodynamic load and influence airflow. How much they do depends on speed, geometry, position, mounting, and the motorcycle around them.
Their contribution becomes more significant on track, where higher speeds occur repeatedly. On the street, the effect is smaller, while fitment, installation quality, and design integration become more immediate considerations.
A winglet should not be judged by appearance or a single downforce number. It should be judged by the motorcycle it was designed for and the conditions under which it was evaluated.
Find parts developed for your motorcycle
Start with model and year fitment, then compare the available winglet formats for your application.
Sources
- NASA Glenn Research Center, Lift Equation — relationship between aerodynamic force and the square of airspeed.
- Wiński, K. and Piechna, A. (2022), Comprehensive CFD Aerodynamic Simulation of a Sport Motorcycle, Energies 15(16), 5920 — motorcycle and rider treated as a single aerodynamic body; influence of rider position.
- HARMONIZE, HMZ-ZX10R aerodynamic development project — CFD conditions, recorded result, and stated limits of the study.
